802.11AC 600Mbps dual band wireless wifi dongle with external antenna

802.11AC  600Mbps dual band wireless wifi dongle with external antenna 802.11AC  600Mbps dual band wireless wifi dongle with external antenna 802.11AC  600Mbps dual band wireless wifi dongle with external antenna
Product name : 802.11AC 600Mbps dual band wireless wifi dongle with external antenna
Item : TOP-4505AC
Details :
 802.11AC  600Mbps dual band wireless wifi dongle with external antenna

Description:

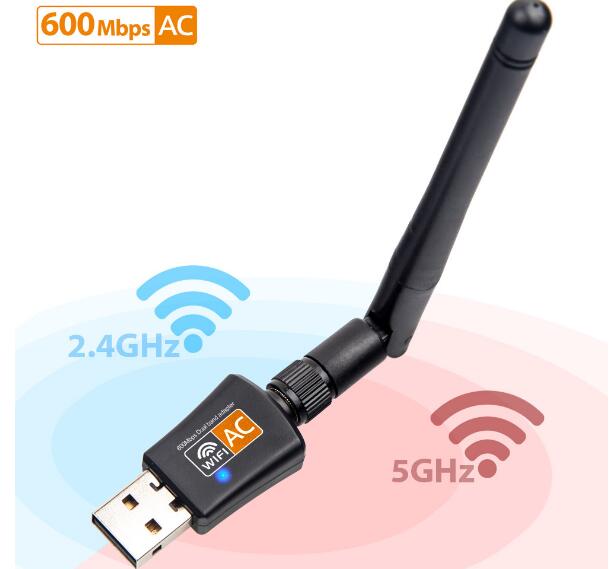

This Dual Band Adapter delivers powerful wireless technology to your desktop or notebook computer. Simply plug the adapter into an available USB port and connect to a wireless network to access a secure, high-speed internet connection – 2.4GHz (150Mbps) or 5GHz (up to 433Mbps). And with integrated Dual Band technology.

Features:

• Chipset:Realtek 8811AU

• System:Win10/8.1/8/7/xp/vista;32/64bits;MAC IOS;Linux

• Supports 802.11ac standard- The next generation of Wi-Fi
• Backward compatible with 802.11 b/g/n products

• Ultra-fast AC600 (433+150Mbps) wireless speed with 802.11ac
• Maximum speed up to 5GHz 433Mbps or 2.4GHz 150Mbps

• Dual Band connections for lag-free HD video streaming and gaming
• Supports Windows 10/8/7/XP 32/64bit, MAC OS, Linux

Wireless Standards

IEEE 802.11ac   IEEE 802.11n   IEEE 802.11g   IEEE 802.11b

Transmit Speed

802.11b: 1/2/5.5/11Mbps

802.11g: 6/9/12/18/24/36/48/54Mbps

802.11n: up to 150Mbps

802.11ac: up to 433Mbps

Frequency Range

2.412~2.4835 GHz

5.180~5.320GHz

5.500~5.700GHz

5.745~5.825GHz

Work Channel

1 ~ 14 (2.4G)

36 ~ 165 (5G)

Work Power

18dBm (Typical)

Sensitivity

11n: -68dBm@130M; -68dBm@108M

11g: -69dBm@54M

11b: -85dBm@11M

11ac: -59dBm@433M

Wireless Security

WPA/WPA2/WPA-WPA2/802.1x

64/128 bit WEP

Support Operation System

Win xp,vista,win7,win8,win10;  mac10.5~mac10.8;

Linux Driver for Kernel 2.6.18~2.6.38 and 3.0.2;

Android 1.6~2.3 and 4.0

Chipset

Realtek8811AU

Host Interface

USB 2.0

LED(BLUE)

Link/Act

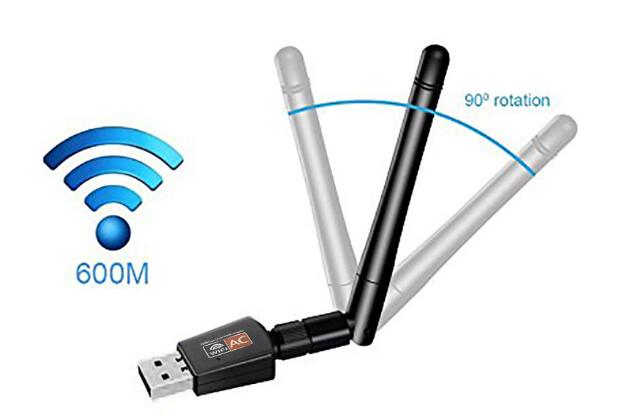

Antenna Type

2dbi SMA or 5dBi SMA

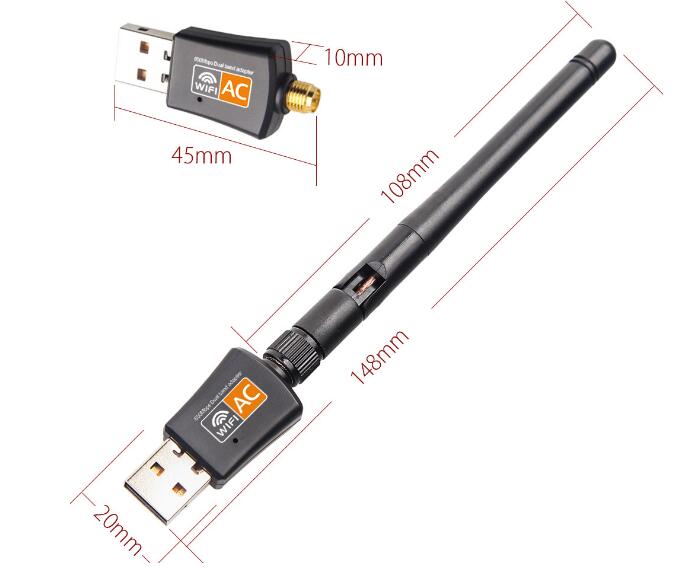

Size

45x20x10mm (with out antenna)

Environment

Operating Temperature: 0℃~45℃

Storage Temperature: -20℃~75℃

Operating Humidity: 10% ~ 90% RH (Non Condensing)

Storage Humidity: 5% ~ 95% RH (Non Condensing)
